- 75, 150, 300, 450 and 600 mm travel

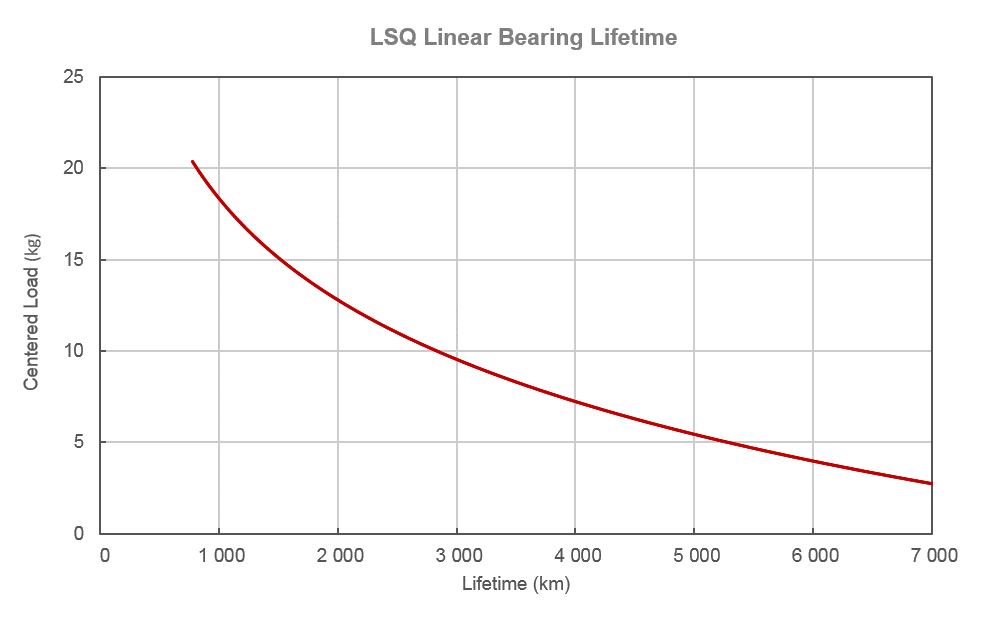

- 20 kg load capacity
- Up to 1 m/s speed and up to 100 N thrust
- Encoder position feedback with slip/stall detection and automatic recovery
- Built-in controller; daisy-chains with any other Zaber Technologies products
- Custom versions available
Features:
1. An indexed knob provides convenient manual control.
2. Integrated motor encoder, controller and stepper motor driver provide easy-to-use closed-loop motion.
3. 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
4. Daisy-chain additional units with a locking X-DC02 cable or X-DC06 cable. Power can also be shared in the chain.
5. Control all units in the daisy-chain via serial port (with a locking X-SDC cable) or USB (with an X-USBDC cable).
6. X-LSQ-E stages are available in a variety of travel lengths and lead screw pitches.
7. Stage top supports metric M6 threaded holes and imperial 8-32 threaded holes.
8. X-LSQ-E stages can be assembled in XY or XYZ configuration without additional hardware.

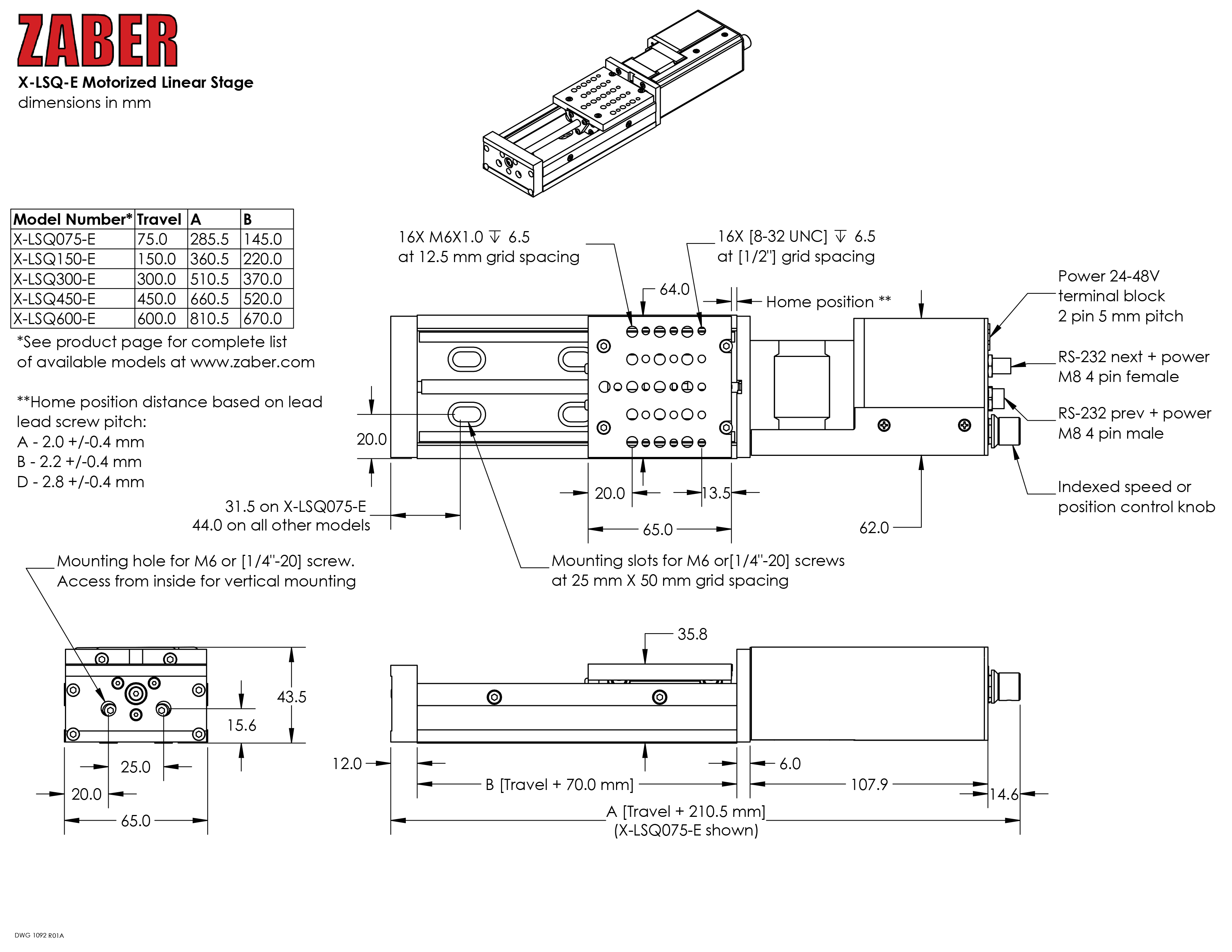

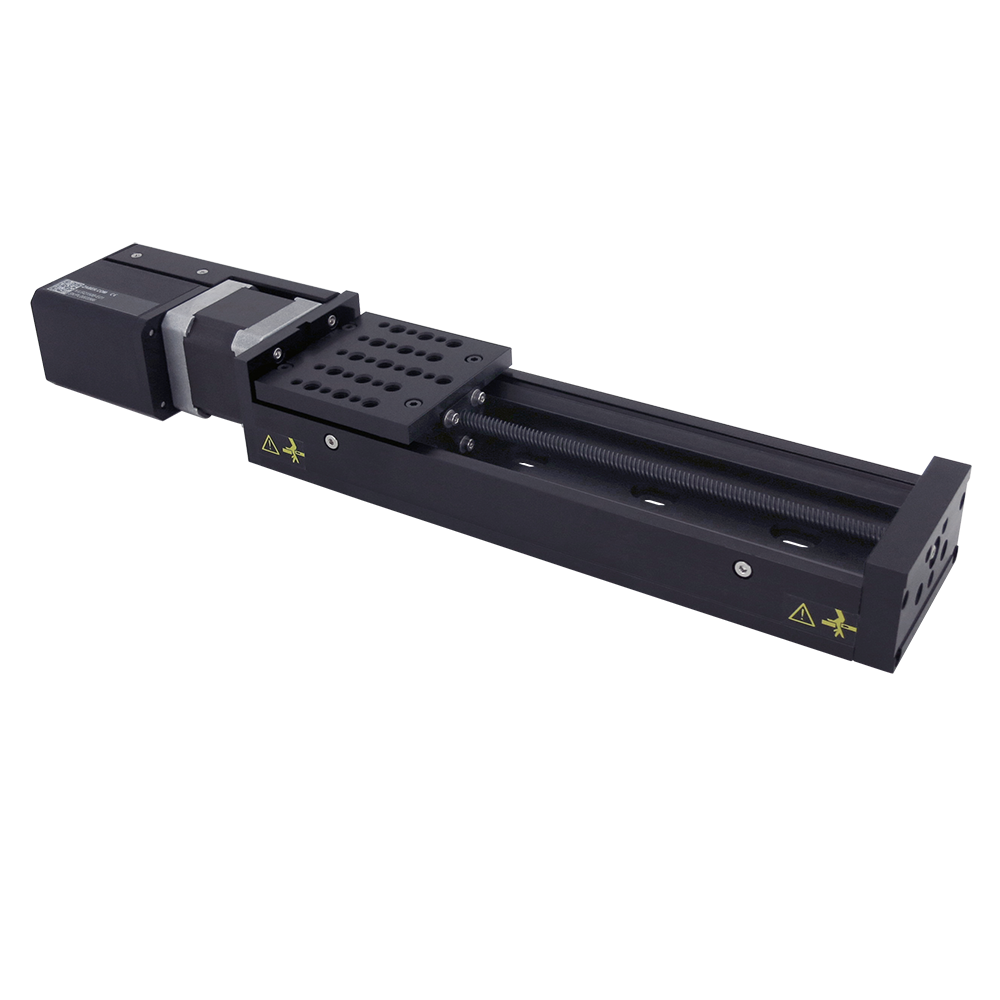

Zaber Technologies’ X-LSQ-E Series products are computer controlled, motorized linear stages with a variety of lead screw pitches and travels. The built-in motor encoder allows closed-loop operation and slip/stall recovery features. They are stand-alone units requiring only a 48 V power supply, included with the kit version.
An indexed knob provides convenient manual control for versatile operation even without a computer. The stages connect to the USB 2.0 or RS-232 port of any computer and can be daisy-chained with up to 254 Zaber Technologies products per chain. Convenient locking, 4-pin, M8 connectors on the unit allow for secure connection between units. The chain also shares power, so multiple X-Series products can use a single power supply.
Zaber Technologies XZ systems
We offer motorized stages that can be assembled into many different configurations; for example, XY stages, XZ (X-LSQ and X-VSR shown in video), XYZ stages and XYZ/rotation stages. Use our standard configurations or select your own combination of stages to build the multi-axis system to fit your needs.
Zaber Technologies’ stages connect to the USB 2.0 or RS-232 port of any computer and can be daisy-chained with up to 254 Zaber Technologies products per chain. The chain also shares power, so multiple X-Series products can use a single power supply.
Zaber Technologies X-LSQ Series Motorized Linear Stages with Built-in Controllers
Zaber Technologies’ X-LSQ Series products are computer-controlled, motorized linear stages with a variety of lead screw pitches and travel lengths. They are stand-alone units requiring only a 48 V power supply, included with the kit version. The stages connect to the USB 2.0 or RS-232 port of any computer and can be daisy-chained with up to 254 Zaber Technologies products per chain. The chain also shares power, so multiple X-Series products can use a single power supply. Available with motor encoders.
