- 75, 150, 300, 450, 600 mm travel
- 100 kg load capacity

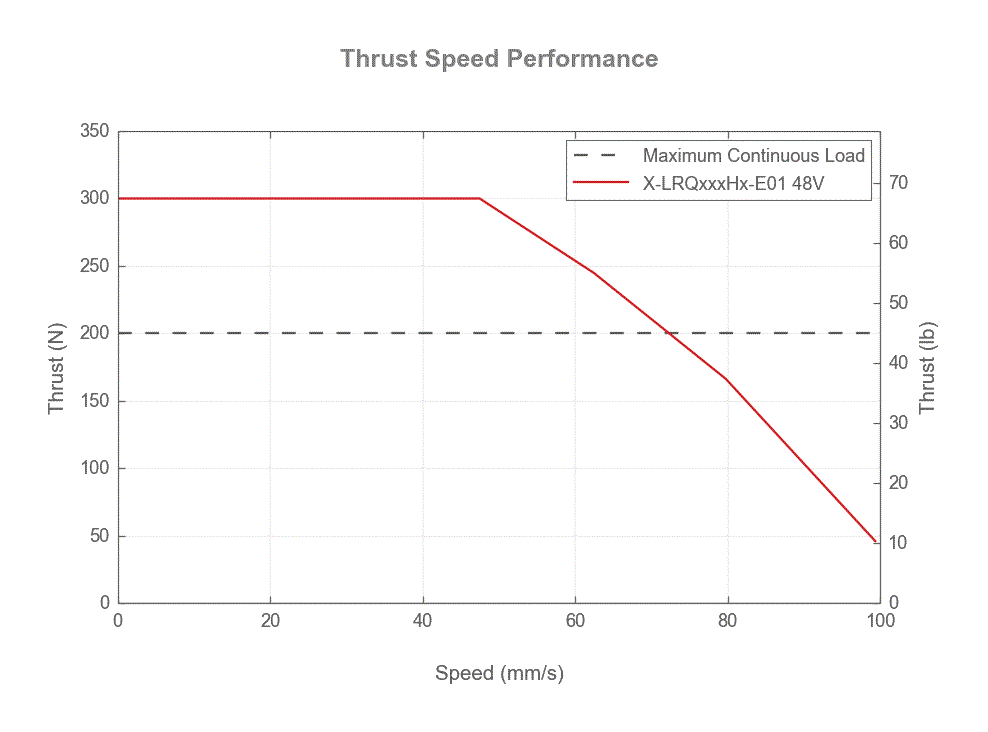

- Up to 840 mm/s speed and up to 300 N thrust
- Built-in controller; daisy-chains with other Zaber Technologies products
- Integrated, 500 CPR, motor mounted encoder provides slip/stall detection and recovery
- Inline and parallel drive configurations
- Ball screw and lead screw configurations
- Custom versions available
Features:
1. An indexed knob provides convenient manual control.
2. Integrated motor encoder, stepper motor controller and motor driver allows for easy-to-use control with stall detection.
3. Inline and parallel drive configurations.
4. 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
5. Control all units in the daisy-chain via serial port (with a locking X-SDC cable) or USB (with an X-USBDC cable).
6. Daisy-chain additional units with a locking X-DC02 cable or X-DC06 cable. Power can also be shared in the chain.

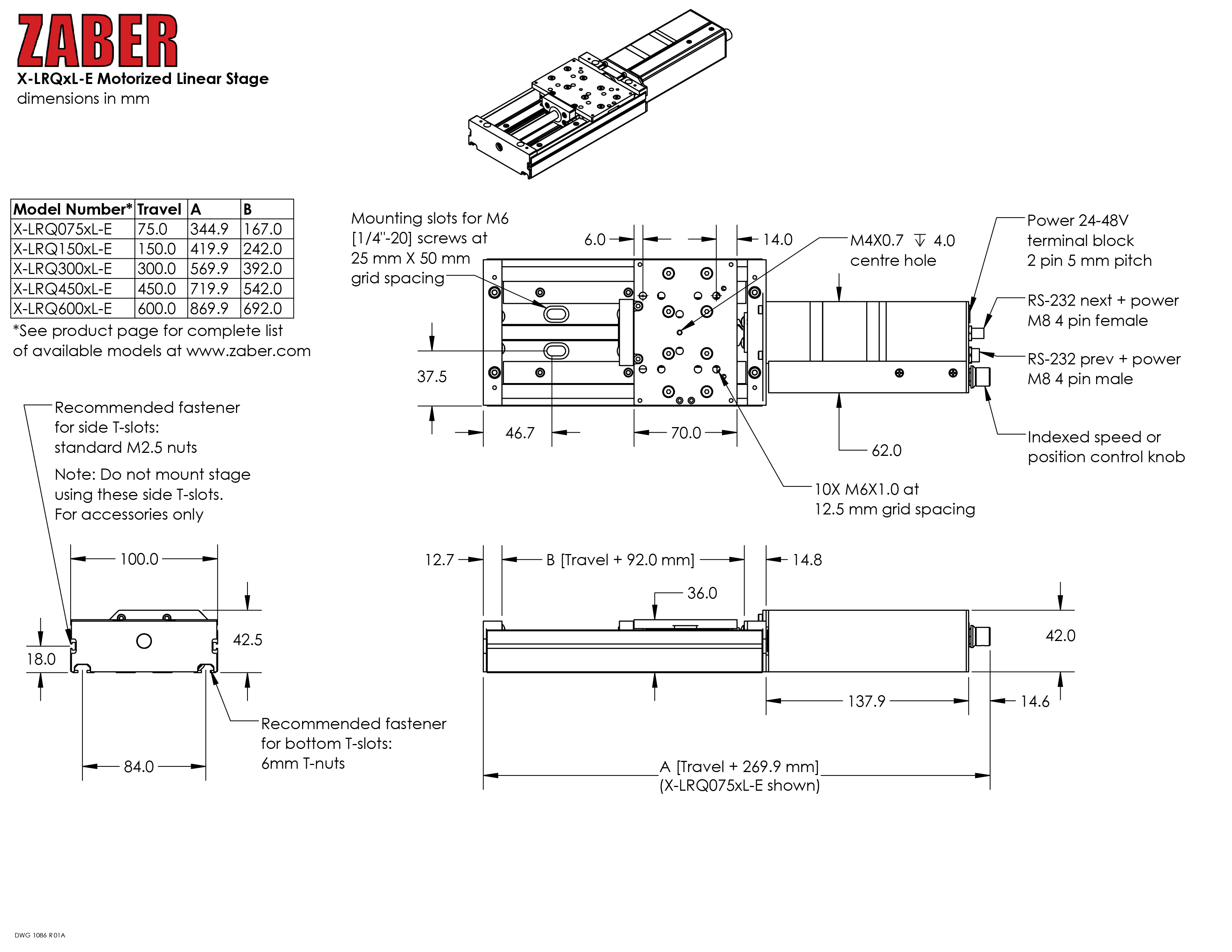

7. Stage top supports metric M3 and M6 threaded holes.
8. Travel lengths from 75 to 600 mm, with custom lengths available.
9. Lead screw and ball screw configurations.
10. Innovative design allows for superior speed & load capabilities; up to 840 mm/s & 100 kg load.
11. X-LRQ-E stages can be assembled in XY or XYZ configuration with an AB104 angle bracket.

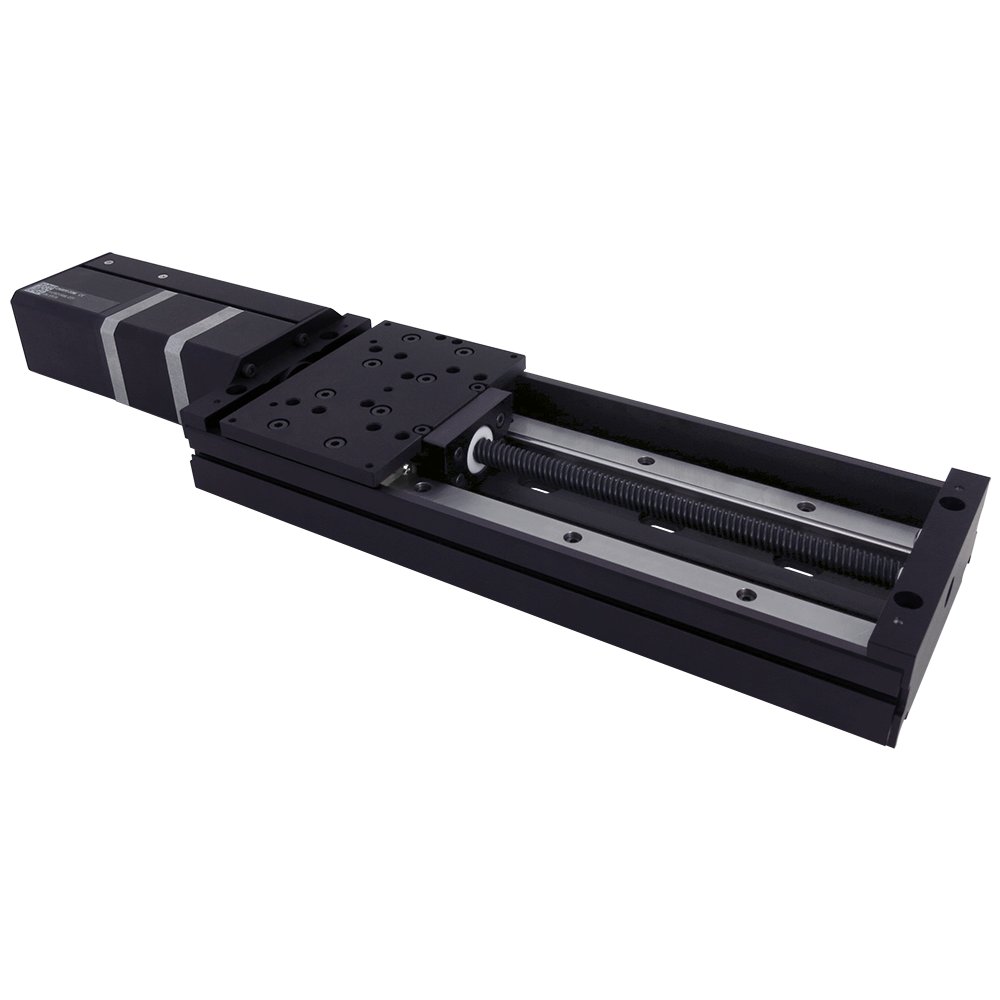

Zaber Technologies’ X-LRQ-E Series devices are computer-controlled, motorized linear stages with high stiffness, load, and lifetime capabilities in a compact size. Each device is available in either an inline or parallel drive configuration. They are stand-alone units requiring only a standard 24 V or 48 V power supply. The built-in motor encoder allows closed-loop operation and slip/stall recovery features. An optional indexed knob provides convenient manual control for versatile operation even without a computer.
These stages connect to the RS-232 port or USB port of any computer, and they can be daisy-chained with any other Zaber Technologies products. The daisy-chain also shares power, making it possible for multiple X-Series products to share a single power supply. Convenient locking, 4-pin, M8 connectors on the unit allow for secure connection between units.
X-LRQ-E Manual (Wiki)
Zaber Technologies ASCII Protocol Manual (Wiki)
Zaber Technologies Binary Protocol Manual (Wiki)
