Built-in controller; daisy-chains with other Zaber Technologies products
Integrated linear encoders with 50 nm resolution provide slip/stall detection and position correction
Ball screw and lead screw configurations
Includes stainless steel dust covers
Features:
1. Daisy-chain additional units with a locking X-DC02 cable or X-DC06 cable. Power can also be shared in the chain.
2. Control all units in the daisy-chain via serial port (with a locking X-SDC cable) or USB (with an X-USBDC cable).
3. Multiple X-LRT-AEC stages can be assembled directly in XY configuration or XYZ configuration with an AB151 angle bracket.
4. Compact recirculating ball bearing design allows for high load capacity and torsional stiffness.
5. Dust cover protects from moderate debris.
6. Standard travel lengths from 100 to 1000 mm, with user customized options available.
7. Integrated linear encoder, stepper motor controller and motor driver allows for easy-to-use, high accuracy positioning.
8. An indexed knob provides convenient manual control.

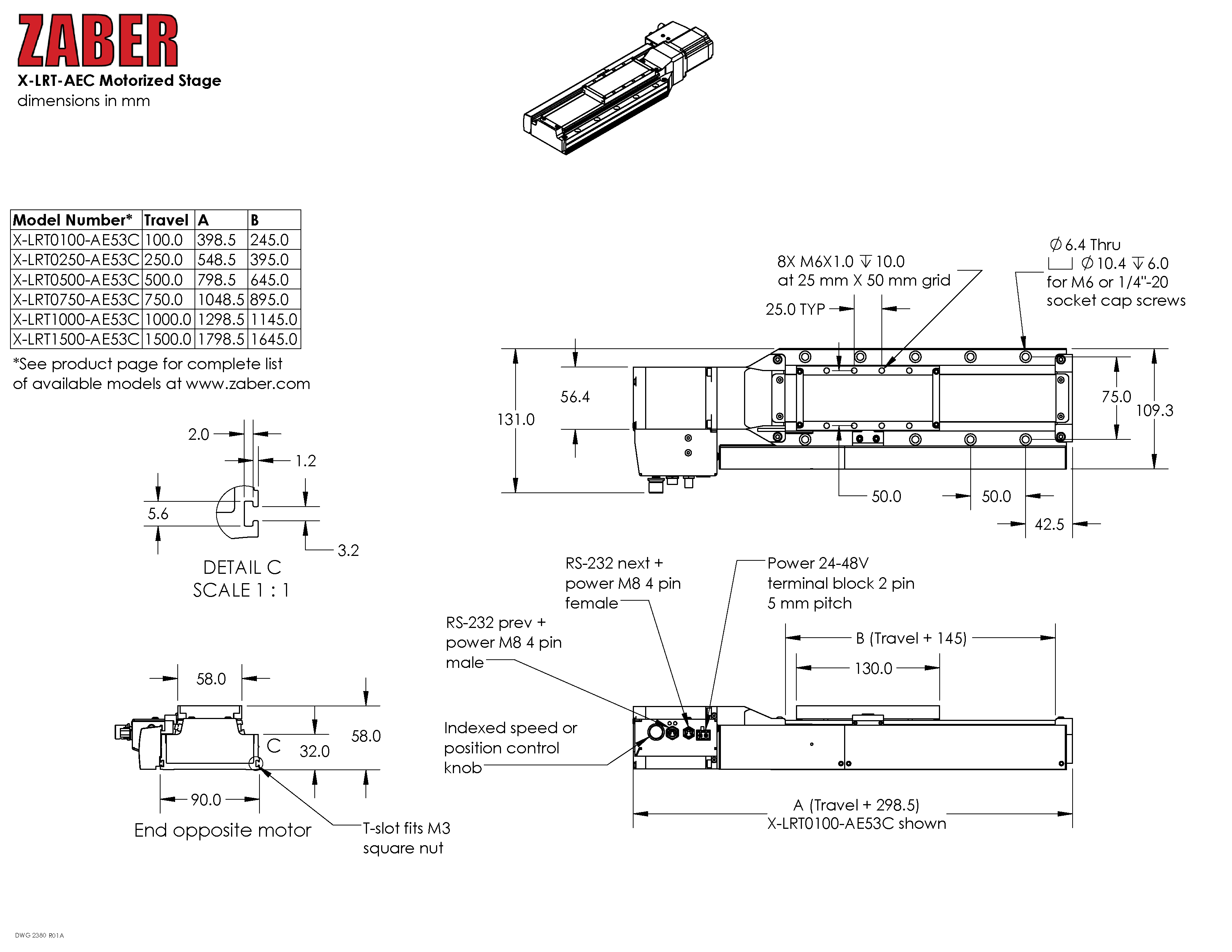

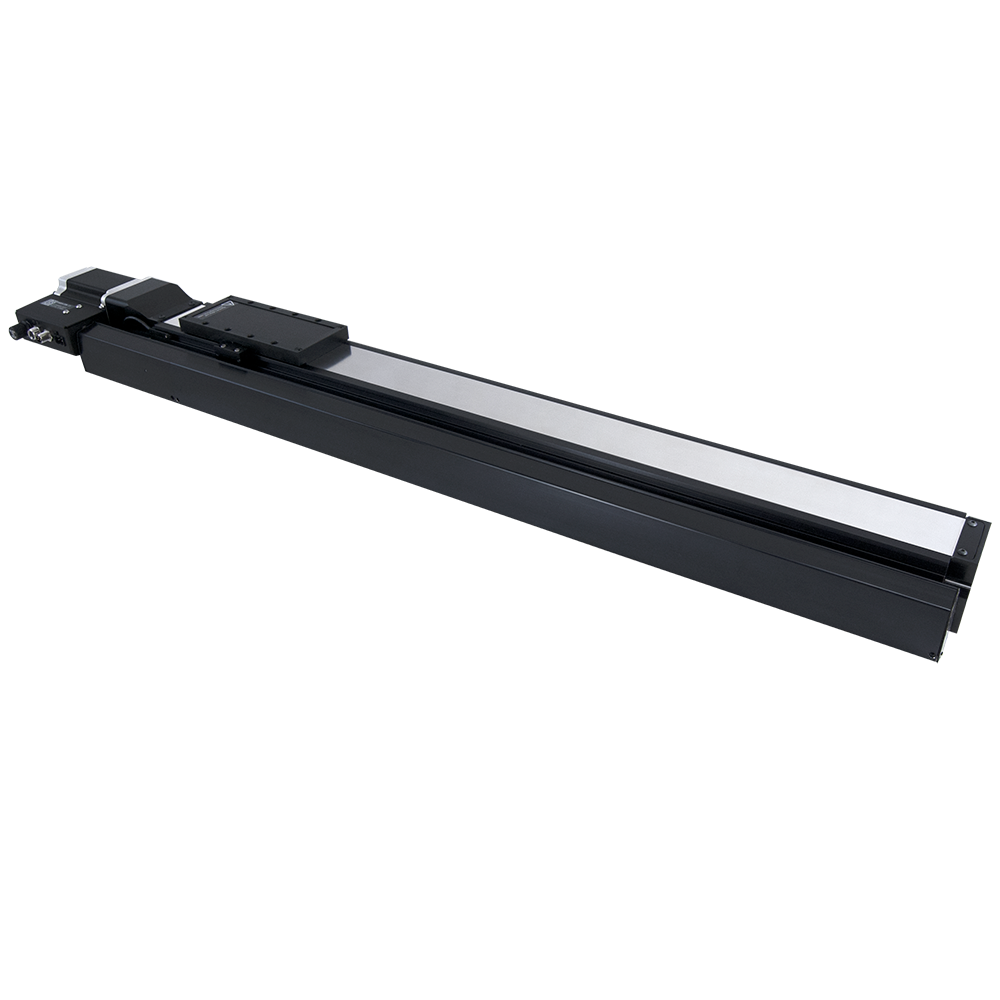

Zaber Technologies’ X-LRT-AEC Series are computer-controlled, motorized linear stages designed for positioning high loads to within 20 µm accuracy. An integrated linear encoder combined with stage calibration provides high accuracy positioning over the full travel of the device. They have low pitch, roll, yaw and runout and long lifetime. Flexible dust covers keep out moderate debris. An indexed knob provides convenient manual control for versatile operation even without a computer.
X-LRT-AEC devices are stand-alone units requiring only a standard 48 V power supply. They connect to the RS-232 port or USB port of any computer, and can be daisy-chained with any other Zaber Technologies products. Like all of Zaber Technologies’ products, the X-LRT-AEC Series is designed to be ‘plug and play’ and very easy to set up and operate.
Axes of Motion
1
Built-in Controller
Yes
CE Compliant
Yes
Encoder Type
Linear analog encoder
Guide Type
Recirculating Ball Linear Guide
Inductance
2 mH/phase
Limit or Home Sensing
Linear Encoder Index Mark
Maximum Centered Load
2940 N
Maximum Current Draw
3600 mA
Motor Rated Current
4200 mA/phase
Motor Steps Per Rev
200
Motor type
Stepper (2 phase)
Operating Temperature
0 – 50 °C
Recommended Voltage
48 V
RoHS Compliant
Yes
Vacuum Compatible
No
Travel Range
100 mm travel, 250 mm travel, 500 mm travel, 750 mm travel, 1000 mm travel
Communication Interface
RS-232
Communication Protocol
Zaber Technologies ASCII (Default)
Data Cable Connection
Locking 4-pin M8
LED Indicators
Yes
Manual Control
Indexed knob with push switch
Power Plug
2-pin Screw Terminal
Power Supply
24-48 VDC

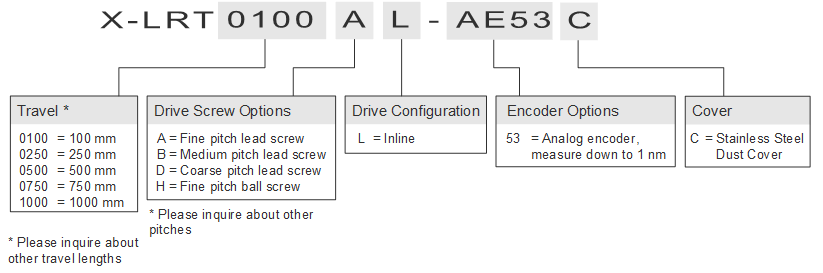

X-LRT0100AL-AE53C-KX14N
Linear Motion Per Motor Rev: 1.5875
Maximum Speed: 45 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.124023438
Minimum Speed: 0.0000757 mm/s
Peak Thrust: 1200 N
Repeatability: < 1 µm
Speed Resolution: 0.0000757 mm/s
Travel Range: 100 mm
Weight: 3.65 kg
X - Travel Range: 100 mm travel
Y - Resolution Level: fine resolution
Maximum Continuous Thrust: 668 N
Back-driving Force: Non-back-driving
Kit: Power supply, 48 V 3.75 A
X-LRT0100AL-AE53C-KX14N is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0100AL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 100 mm travel, integrated linear encoder and controller, fine resolution, low speed
3.65 kg
PS14-48V37-G
1
Power Supply, 48 V 3.75 A, compatible with X-Series Products
0.75 kg
X-DC02
1
Data Cable, 2 ft (0.6 m), for use with all X-Series products
0.04 kg
X-DC02-NP
1
Data cable, no power, 2 ft (0.6 m), for use with all X-Series products
0.040 kg
X-USBDC
1
USB to serial converter cable with M8 female plug for X-Series products
0.06 kg
X-LRT0100AL-AE53C-PTB2
Linear Motion Per Motor Rev: 1.5875
Maximum Speed: 45 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.124023438
Minimum Speed: 0.0000757 mm/s
Peak Thrust: 1200 N
Repeatability: < 1 µm
Speed Resolution: 0.0000757 mm/s
Travel Range: 100 mm
Weight: 3.65 kg
Maximum Continuous Thrust: 668 N
Back-driving Force: Non-back-driving
Kit: Stage Only
X-LRT0100AL-AE53C-PTB2 is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0100AL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 100 mm travel, integrated linear encoder and controller, fine resolution, low speed
3.65 kg
PTB2
1
Power terminal block, 2 pin, 5 mm pitch, for use with X-Series devices with custom power supply
0.004 kg
X-LRT0100BL-AE53C-KX14N
Linear Motion Per Motor Rev: 6.35
Maximum Speed: 181 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.49609375
Minimum Speed: 0.000303 mm/s
Peak Thrust: 600 N
Repeatability: < 1.5 µm
Speed Resolution: 0.000303 mm/s
Travel Range: 100 mm
Weight: 3.65 kg
Y - Resolution Level: medium resolution
Maximum Continuous Thrust: 600 N
Back-driving Force: 420 N (± 30%)
X-LRT0100BL-AE53C-KX14N is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0100BL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 100 mm travel, integrated linear encoder and controller, medium resolution, medium speed
3.65 kg
PS14-48V37-G
1
Power Supply, 48 V 3.75 A, compatible with X-Series Products
0.75 kg
X-DC02
1
Data Cable, 2 ft (0.6 m), for use with all X-Series products
0.04 kg
X-DC02-NP
1
Data cable, no power, 2 ft (0.6 m), for use with all X-Series products
0.040 kg
X-USBDC
1
USB to serial converter cable with M8 female plug for X-Series products
0.06 kg
X-LRT0100BL-AE53C-PTB2
Linear Motion Per Motor Rev: 6.35
Maximum Speed: 181 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.49609375
Minimum Speed: 0.000303 mm/s
Peak Thrust: 600 N
Repeatability: < 1.5 µm
Speed Resolution: 0.000303 mm/s
Travel Range: 100 mm
Weight: 3.65 kg
Maximum Continuous Thrust: 600 N
Back-driving Force: 420 N (± 30%)
X-LRT0100BL-AE53C-PTB2 is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0100BL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 100 mm travel, integrated linear encoder and controller, medium resolution, medium speed
3.65 kg
PTB2
1
Power terminal block, 2 pin, 5 mm pitch, for use with X-Series devices with custom power supply
0.004 kg
X-LRT0100DL-AE53C-KX14N
Linear Motion Per Motor Rev: 25.4
Maximum Speed: 726 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 1.984375
Minimum Speed: 0.00121 mm/s
Peak Thrust: 100 N
Repeatability: < 1.5 µm
Speed Resolution: 0.00121 mm/s
Travel Range: 100 mm
Weight: 3.65 kg
Y - Resolution Level: coarse resolution
Maximum Continuous Thrust: 100 N
Back-driving Force: 40 N (± 30%)
X-LRT0100DL-AE53C-KX14N is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0100DL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 100 mm travel, integrated linear encoder and controller, coarse resolution, high speed
3.65 kg
PS14-48V37-G
1
Power Supply, 48 V 3.75 A, compatible with X-Series Products
0.75 kg
X-DC02
1
Data Cable, 2 ft (0.6 m), for use with all X-Series products
0.04 kg
X-DC02-NP
1
Data cable, no power, 2 ft (0.6 m), for use with all X-Series products
0.040 kg
X-USBDC
1
USB to serial converter cable with M8 female plug for X-Series products
0.06 kg
X-LRT0100DL-AE53C-PTB2
Linear Motion Per Motor Rev: 25.4
Maximum Speed: 726 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 1.984375
Minimum Speed: 0.00121 mm/s
Peak Thrust: 100 N
Repeatability: < 1.5 µm
Speed Resolution: 0.00121 mm/s
Travel Range: 100 mm
Weight: 3.65 kg
Maximum Continuous Thrust: 100 N
Back-driving Force: 40 N (± 30%)
X-LRT0100DL-AE53C-PTB2 is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0100DL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 100 mm travel, integrated linear encoder and controller, coarse resolution, high speed
3.65 kg
PTB2
1
Power terminal block, 2 pin, 5 mm pitch, for use with X-Series devices with custom power supply
0.004 kg
X-LRT0100HL-AE53C-KX14N
Linear Motion Per Motor Rev: 5
Maximum Speed: 143 mm/s
Mechanical Drive System: Precision ball screw
Microstep Size (Default Resolution): 0.390625
Minimum Speed: 0.000238583 mm/s
Peak Thrust: 1200 N
Repeatability: < 1.5 µm
Speed Resolution: 0.000238583 mm/s
Travel Range: 100 mm
Weight: 3.65 kg
Y - Resolution Level: medium resolution, ball-screw driven
Maximum Continuous Thrust: 1200 N
Back-driving Force: 157 N (± 30%)
X-LRT0100HL-AE53C-KX14N is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0100HL-AE53C
1
Motorized, ball-screw driven, covered linear stage, 100 mm travel, integrated linear encoder and controller, medium resolution, medium speed
3.65 kg
PS14-48V37-G
1
Power Supply, 48 V 3.75 A, compatible with X-Series Products
0.75 kg
X-DC02
1
Data Cable, 2 ft (0.6 m), for use with all X-Series products
0.04 kg
X-DC02-NP
1
Data cable, no power, 2 ft (0.6 m), for use with all X-Series products
0.040 kg
X-USBDC
1
USB to serial converter cable with M8 female plug for X-Series products
0.06 kg
X-LRT0100HL-AE53C-PTB2
Linear Motion Per Motor Rev: 5
Maximum Speed: 143 mm/s
Mechanical Drive System: Precision ball screw
Microstep Size (Default Resolution): 0.390625
Minimum Speed: 0.000238583 mm/s
Peak Thrust: 1200 N
Repeatability: < 1.5 µm
Speed Resolution: 0.000238583 mm/s
Travel Range: 100 mm
Weight: 3.65 kg
Maximum Continuous Thrust: 1200 N
Back-driving Force: 157 N (± 30%)
X-LRT0100HL-AE53C-PTB2 is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0100HL-AE53C
1
Motorized, ball-screw driven, covered linear stage, 100 mm travel, integrated linear encoder and controller, medium resolution, medium speed
3.65 kg
PTB2
1
Power terminal block, 2 pin, 5 mm pitch, for use with X-Series devices with custom power supply
0.004 kg
X-LRT0250AL-AE53C-KX14N
Linear Motion Per Motor Rev: 1.5875
Maximum Speed: 45 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.124023438
Minimum Speed: 0.0000757 mm/s
Peak Thrust: 1200 N
Repeatability: < 1 µm
Speed Resolution: 0.0000757 mm/s
Travel Range: 250 mm
Weight: 4.441 kg
X - Travel Range: 250 mm travel
Maximum Continuous Thrust: 668 N
Back-driving Force: Non-back-driving
X-LRT0250AL-AE53C-KX14N is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0250AL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 250 mm travel, integrated linear encoder and controller, fine resolution, low speed
4.441 kg
PS14-48V37-G
1
Power Supply, 48 V 3.75 A, compatible with X-Series Products
0.75 kg
X-DC02
1
Data Cable, 2 ft (0.6 m), for use with all X-Series products
0.04 kg
X-DC02-NP
1
Data cable, no power, 2 ft (0.6 m), for use with all X-Series products
0.040 kg
X-USBDC
1
USB to serial converter cable with M8 female plug for X-Series products
0.06 kg
X-LRT0250AL-AE53C-PTB2
Linear Motion Per Motor Rev: 1.5875
Maximum Speed: 45 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.124023438
Minimum Speed: 0.0000757 mm/s
Peak Thrust: 1200 N
Repeatability: < 1 µm
Speed Resolution: 0.0000757 mm/s
Travel Range: 250 mm
Weight: 4.441 kg
Maximum Continuous Thrust: 668 N
Back-driving Force: Non-back-driving
X-LRT0250AL-AE53C-PTB2 is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0250AL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 250 mm travel, integrated linear encoder and controller, fine resolution, low speed
4.441 kg
PTB2
1
Power terminal block, 2 pin, 5 mm pitch, for use with X-Series devices with custom power supply
0.004 kg
X-LRT0250BL-AE53C-KX14N
Linear Motion Per Motor Rev: 6.35
Maximum Speed: 181 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.49609375
Minimum Speed: 0.000303 mm/s
Peak Thrust: 600 N
Repeatability: < 1.5 µm
Speed Resolution: 0.000303 mm/s
Travel Range: 250 mm
Weight: 4.441 kg
Maximum Continuous Thrust: 600 N
Back-driving Force: 420 N (± 30%)
X-LRT0250BL-AE53C-KX14N is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0250BL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 250 mm travel, integrated linear encoder and controller, medium resolution, medium speed
4.441 kg
PS14-48V37-G
1
Power Supply, 48 V 3.75 A, compatible with X-Series Products
0.75 kg
X-DC02
1
Data Cable, 2 ft (0.6 m), for use with all X-Series products
0.04 kg
X-DC02-NP
1
Data cable, no power, 2 ft (0.6 m), for use with all X-Series products
0.040 kg
X-USBDC
1
USB to serial converter cable with M8 female plug for X-Series products
0.06 kg
X-LRT0250BL-AE53C-PTB2
Linear Motion Per Motor Rev: 6.35
Maximum Speed: 181 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.49609375
Minimum Speed: 0.000303 mm/s
Peak Thrust: 600 N
Repeatability: < 1.5 µm
Speed Resolution: 0.000303 mm/s
Travel Range: 250 mm
Weight: 4.441 kg
Maximum Continuous Thrust: 600 N
Back-driving Force: 420 N (± 30%)
X-LRT0250BL-AE53C-PTB2 is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0250BL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 250 mm travel, integrated linear encoder and controller, medium resolution, medium speed
4.441 kg
PTB2
1
Power terminal block, 2 pin, 5 mm pitch, for use with X-Series devices with custom power supply
0.004 kg
X-LRT0250DL-AE53C-KX14N
Linear Motion Per Motor Rev: 25.4
Maximum Speed: 726 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 1.984375
Minimum Speed: 0.00121 mm/s
Peak Thrust: 100 N
Repeatability: < 1.5 µm
Speed Resolution: 0.00121 mm/s
Travel Range: 250 mm
Weight: 4.441 kg
Maximum Continuous Thrust: 100 N
Back-driving Force: 40 N (± 30%)
X-LRT0250DL-AE53C-KX14N is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0250DL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 250 mm travel, integrated linear encoder and controller, coarse resolution, high speed
4.441 kg
PS14-48V37-G
1
Power Supply, 48 V 3.75 A, compatible with X-Series Products
0.75 kg
X-DC02
1
Data Cable, 2 ft (0.6 m), for use with all X-Series products
0.04 kg
X-DC02-NP
1
Data cable, no power, 2 ft (0.6 m), for use with all X-Series products
0.040 kg
X-USBDC
1
USB to serial converter cable with M8 female plug for X-Series products
0.06 kg
X-LRT0250DL-AE53C-PTB2
Linear Motion Per Motor Rev: 25.4
Maximum Speed: 726 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 1.984375
Minimum Speed: 0.00121 mm/s
Peak Thrust: 100 N
Repeatability: < 1.5 µm
Speed Resolution: 0.00121 mm/s
Travel Range: 250 mm
Weight: 4.441 kg
Maximum Continuous Thrust: 100 N
Back-driving Force: 40 N (± 30%)
X-LRT0250DL-AE53C-PTB2 is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0250DL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 250 mm travel, integrated linear encoder and controller, coarse resolution, high speed
4.441 kg
PTB2
1
Power terminal block, 2 pin, 5 mm pitch, for use with X-Series devices with custom power supply
0.004 kg
X-LRT0250HL-AE53C-KX14N
Linear Motion Per Motor Rev: 5
Maximum Speed: 143 mm/s
Mechanical Drive System: Precision ball screw
Microstep Size (Default Resolution): 0.390625
Minimum Speed: 0.000238583 mm/s
Peak Thrust: 1200 N
Repeatability: < 1.5 µm
Speed Resolution: 0.000238583 mm/s
Travel Range: 250 mm
Weight: 4.441 kg
Maximum Continuous Thrust: 1200 N
Back-driving Force: 157 N (± 30%)
X-LRT0250HL-AE53C-KX14N is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0250HL-AE53C
1
Motorized, ball-screw driven, covered linear stage, 250 mm travel, integrated linear encoder and controller, medium resolution, medium speed
4.441 kg
PS14-48V37-G
1
Power Supply, 48 V 3.75 A, compatible with X-Series Products
0.75 kg
X-DC02
1
Data Cable, 2 ft (0.6 m), for use with all X-Series products
0.04 kg
X-DC02-NP
1
Data cable, no power, 2 ft (0.6 m), for use with all X-Series products
0.040 kg
X-USBDC
1
USB to serial converter cable with M8 female plug for X-Series products
0.06 kg
X-LRT0250HL-AE53C-PTB2
Linear Motion Per Motor Rev: 5
Maximum Speed: 143 mm/s
Mechanical Drive System: Precision ball screw
Microstep Size (Default Resolution): 0.390625
Minimum Speed: 0.000238583 mm/s
Peak Thrust: 1200 N
Repeatability: < 1.5 µm
Speed Resolution: 0.000238583 mm/s
Travel Range: 250 mm
Weight: 4.441 kg
Maximum Continuous Thrust: 1200 N
Back-driving Force: 157 N (± 30%)
X-LRT0250HL-AE53C-PTB2 is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0250HL-AE53C
1
Motorized, ball-screw driven, covered linear stage, 250 mm travel, integrated linear encoder and controller, medium resolution, medium speed
4.441 kg
PTB2
1
Power terminal block, 2 pin, 5 mm pitch, for use with X-Series devices with custom power supply
0.004 kg
X-LRT0500AL-AE53C-KX14N
Linear Motion Per Motor Rev: 1.5875
Maximum Speed: 45 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.124023438
Minimum Speed: 0.0000757 mm/s
Peak Thrust: 1200 N
Repeatability: < 1 µm
Speed Resolution: 0.0000757 mm/s
Travel Range: 500 mm
Weight: 5.758 kg
X - Travel Range: 500 mm travel
Maximum Continuous Thrust: 668 N
Back-driving Force: Non-back-driving
X-LRT0500AL-AE53C-KX14N is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0500AL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 500 mm travel, integrated linear encoder and controller, fine resolution, low speed
5.758 kg
PS14-48V37-G
1
Power Supply, 48 V 3.75 A, compatible with X-Series Products
0.75 kg
X-DC02
1
Data Cable, 2 ft (0.6 m), for use with all X-Series products
0.04 kg
X-DC02-NP
1
Data cable, no power, 2 ft (0.6 m), for use with all X-Series products
0.040 kg
X-USBDC
1
USB to serial converter cable with M8 female plug for X-Series products
0.06 kg
X-LRT0500AL-AE53C-PTB2
Linear Motion Per Motor Rev: 1.5875
Maximum Speed: 45 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.124023438
Minimum Speed: 0.0000757 mm/s
Peak Thrust: 1200 N
Repeatability: < 1 µm
Speed Resolution: 0.0000757 mm/s
Travel Range: 500 mm
Weight: 5.758 kg
Maximum Continuous Thrust: 668 N
Back-driving Force: Non-back-driving
X-LRT0500AL-AE53C-PTB2 is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0500AL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 500 mm travel, integrated linear encoder and controller, fine resolution, low speed
5.758 kg
PTB2
1
Power terminal block, 2 pin, 5 mm pitch, for use with X-Series devices with custom power supply
0.004 kg
X-LRT0500BL-AE53C-KX14N
Linear Motion Per Motor Rev: 6.35
Maximum Speed: 181 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.49609375
Minimum Speed: 0.000303 mm/s
Peak Thrust: 600 N
Repeatability: < 1.5 µm
Speed Resolution: 0.000303 mm/s
Travel Range: 500 mm
Weight: 5.758 kg
Maximum Continuous Thrust: 600 N
Back-driving Force: 420 N (± 30%)
X-LRT0500BL-AE53C-KX14N is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0500BL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 500 mm travel, integrated linear encoder and controller, medium resolution, medium speed
5.758 kg
PS14-48V37-G
1
Power Supply, 48 V 3.75 A, compatible with X-Series Products
0.75 kg
X-DC02
1
Data Cable, 2 ft (0.6 m), for use with all X-Series products
0.04 kg
X-DC02-NP
1
Data cable, no power, 2 ft (0.6 m), for use with all X-Series products
0.040 kg
X-USBDC
1
USB to serial converter cable with M8 female plug for X-Series products
0.06 kg
X-LRT0500BL-AE53C-PTB2
Linear Motion Per Motor Rev: 6.35
Maximum Speed: 181 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 0.49609375
Minimum Speed: 0.000303 mm/s
Peak Thrust: 600 N
Repeatability: < 1.5 µm
Speed Resolution: 0.000303 mm/s
Travel Range: 500 mm
Weight: 5.758 kg
Maximum Continuous Thrust: 600 N
Back-driving Force: 420 N (± 30%)
X-LRT0500BL-AE53C-PTB2 is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0500BL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 500 mm travel, integrated linear encoder and controller, medium resolution, medium speed
5.758 kg
PTB2
1
Power terminal block, 2 pin, 5 mm pitch, for use with X-Series devices with custom power supply
0.004 kg
X-LRT0500DL-AE53C-KX14N
Linear Motion Per Motor Rev: 25.4
Maximum Speed: 726 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 1.984375
Minimum Speed: priceUSD mm/s
Peak Thrust: 100 N
Repeatability: < 1.5 µm
Speed Resolution: 0.00121 mm/s
Travel Range: 500 mm
Weight: 5.758 kg
Maximum Continuous Thrust: 100 N
Back-driving Force: 40 N (± 30%)
X-LRT0500DL-AE53C-KX14N is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0500DL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 500 mm travel, integrated linear encoder and controller, coarse resolution, high speed
5.758 kg
PS14-48V37-G
1
Power Supply, 48 V 3.75 A, compatible with X-Series Products
0.75 kg
X-DC02
1
Data Cable, 2 ft (0.6 m), for use with all X-Series products
0.04 kg
X-DC02-NP
1
Data cable, no power, 2 ft (0.6 m), for use with all X-Series products
0.040 kg
X-USBDC
1
USB to serial converter cable with M8 female plug for X-Series products
0.06 kg
X-LRT0500DL-AE53C-PTB2
Linear Motion Per Motor Rev: 25.4
Maximum Speed: 726 mm/s
Mechanical Drive System: Precision lead screw
Microstep Size (Default Resolution): 1.984375
Minimum Speed: priceUSD mm/s
Peak Thrust: 100 N
Repeatability: < 1.5 µm
Speed Resolution: 0.00121 mm/s
Travel Range: 500 mm
Weight: 5.758 kg
Maximum Continuous Thrust: 100 N
Back-driving Force: 40 N (± 30%)
X-LRT0500DL-AE53C-PTB2 is a kit, comprised of:
Product Code
Qty
Description
Weight
X-LRT0500DL-AE53C
1
Motorized, lead-screw driven, covered linear stage, 500 mm travel, integrated linear encoder and controller, coarse resolution, high speed
5.758 kg
PTB2
1
Power terminal block, 2 pin, 5 mm pitch, for use with X-Series devices with custom power supply
If you’re interested in the products shown here, or have questions about something you can’t find on our website, please get in touch through the form below.
Our knowledgeable sales team will be happy to help. We can normally source exactly what you need, or work with you to come up with custom solutions.
Alternatively, just call +44 (0) 1933 461 666 and ask to speak to the Photonics team.
