- 75, 150, 300, 450, 600 mm travel
- Up to 13 µm accuracy over 600 mm travel
- 100 kg load capacity
- Up to 205 mm/s speed and up to 300 N thrust
- Built-in controller; daisy-chains with other Zaber Technologies products
- Integrated linear encoders with 50 nm resolution provide slip/stall detection and position correction
- Inline and parallel drive configurations
- Ball screw and lead screw configurations
- Includes stainless steel dust cover
- Custom versions available
Features:
1. An indexed knob provides convenient manual control.
2. Integrated linear encoder with 50 nm resolution and stage calibration provides full travel accuracy up to 13 µm.
3. Inline and parallel drive configurations.
4. 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
5. Control all units in the daisy-chain via serial port (with a locking X-SDC cable) or USB (with an X-USBDC cable).
6. Daisy-chain additional units with a locking X-DC02 cable or X-DC06 cable. Power can also be shared in the chain.
7. Stage top supports metric M3 and M6 threaded holes.
8. Integrated linear encoder, stepper motor controller and motor driver allows for easy-to-use control with stall detection and position correction.
9. Travel lengths from 75 to 600 mm, with custom lengths available.
10. Lead screw and ball screw configurations.
11. Innovative design allows for superior speed & load capabilities; up to 205 mm/s & 100 kg load.
12. Flexible stainless steel dust cover protects internal lead screw and bearings.
13. X-LRQ-DEC stages can be assembled in XY.

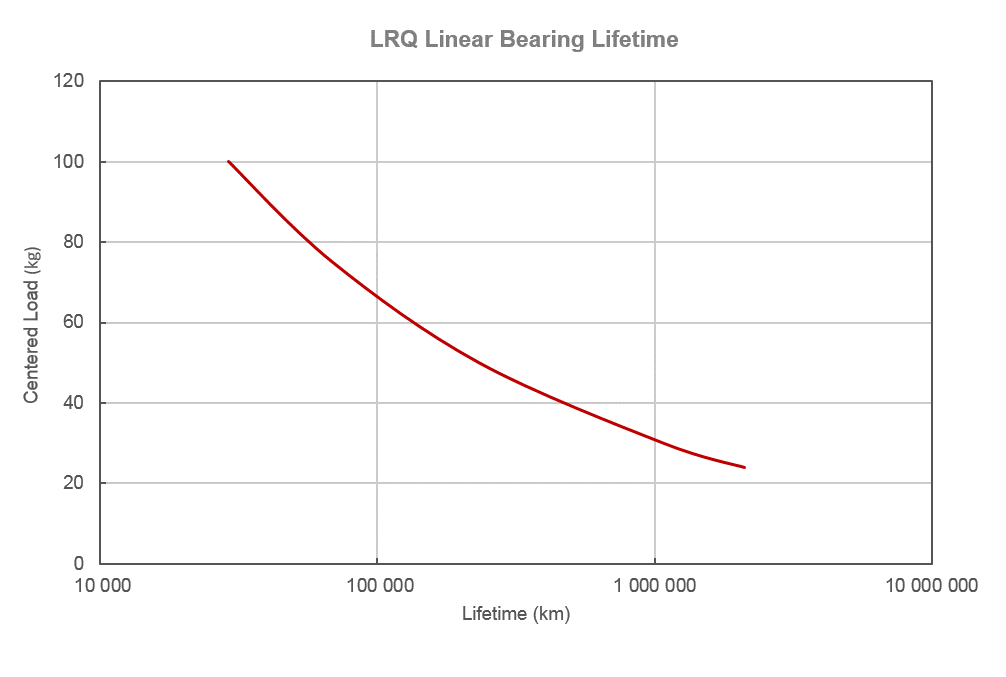

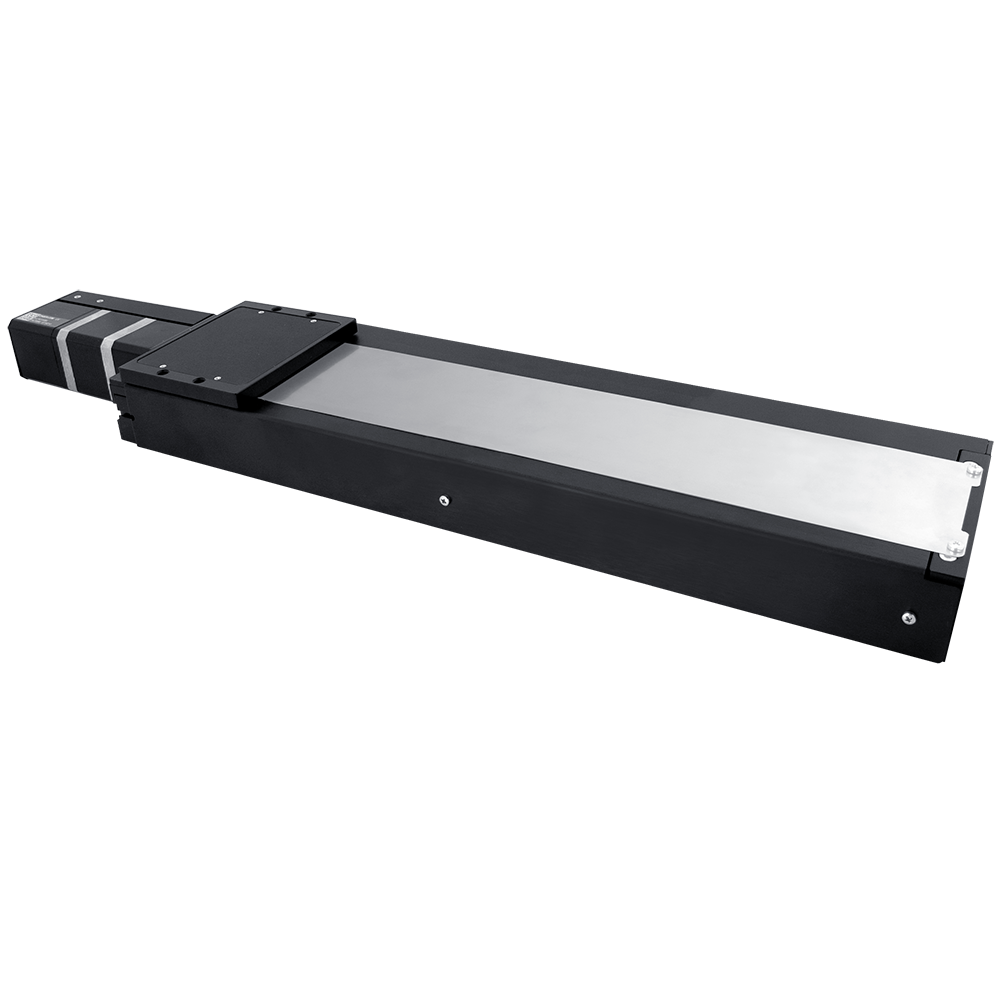

Zaber Technologies’ X-LRQ-DEC Series devices are computer-controlled, motorized linear stages with high stiffness, load, and lifetime capabilities in a compact size. An integrated linear encoder combined with stage calibration provides high accuracy positioning over the full travel of the device. Each device is available in either an inline or parallel drive configuration. A flexible stainless steel dust cover prevents the ingress of small objects. They are stand-alone units requiring only a standard 24 V or 48 V power supply. An optional indexed knob provides convenient manual control for versatile operation even without a computer.
These stages connect to the RS-232 port or USB port of any computer, and they can be daisy-chained with any other Zaber Technologies products. The daisy-chain also shares power, making it possible for multiple X-Series products to share a single power supply. Convenient locking, 4-pin, M8 connectors on the unit allow for secure connection between units.
