- Hardened steel construction and integrated recirculating ball bearing guide provide exceptional stiffness and thermal stability
- 25, 50, 100, 150, 200 mm travel
- Motor encoder position feedback with slip/stall detection and automatic recovery
- Up to 8 µm accuracy and 50 nm resolution
- 50 kg load capacity
- Built-in controller, daisy-chains with other Zaber Technologies products
Features:
1. An indexed knob provides convenient manual control.
2. Integrated motor encoder, controller and stepper motor driver provide easy-to-use closed-loop motion.
3. 200 step per revolution stepper motor, microstepped up to 256x provides smooth and precise motion.
4. Control all units in the daisy-chain via serial port (with a locking X-SDC cable) or USB (with an X-USBDC cable).
5. Daisy-chain additional units with a locking X-DC02 cable or X-DC06 cable. Power can also be shared in the chain.
6. Hardened steel construction and recirculating ball bearing guide provide excellent stiffness and thermal stability.
7. Travel lengths from 25 to 200 mm, with custom lengths available.
8. Mounts directly to standard metric or imperial breadboards.

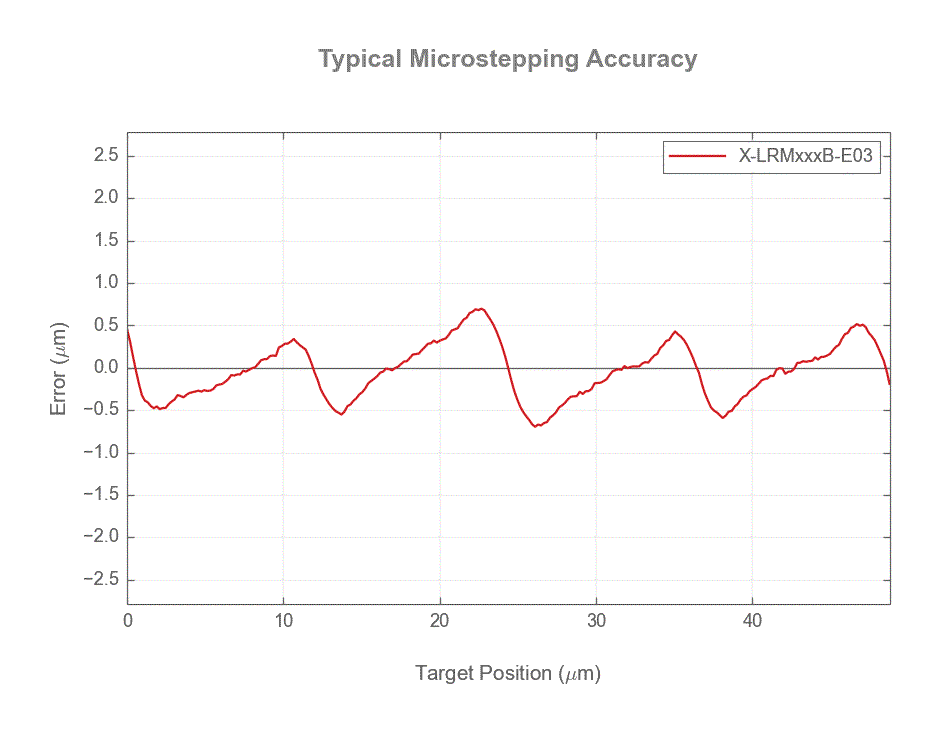

9. Up to 8 µm accuracy, 50 nm resolution, 25 mm/s speed and 50 N thrust.

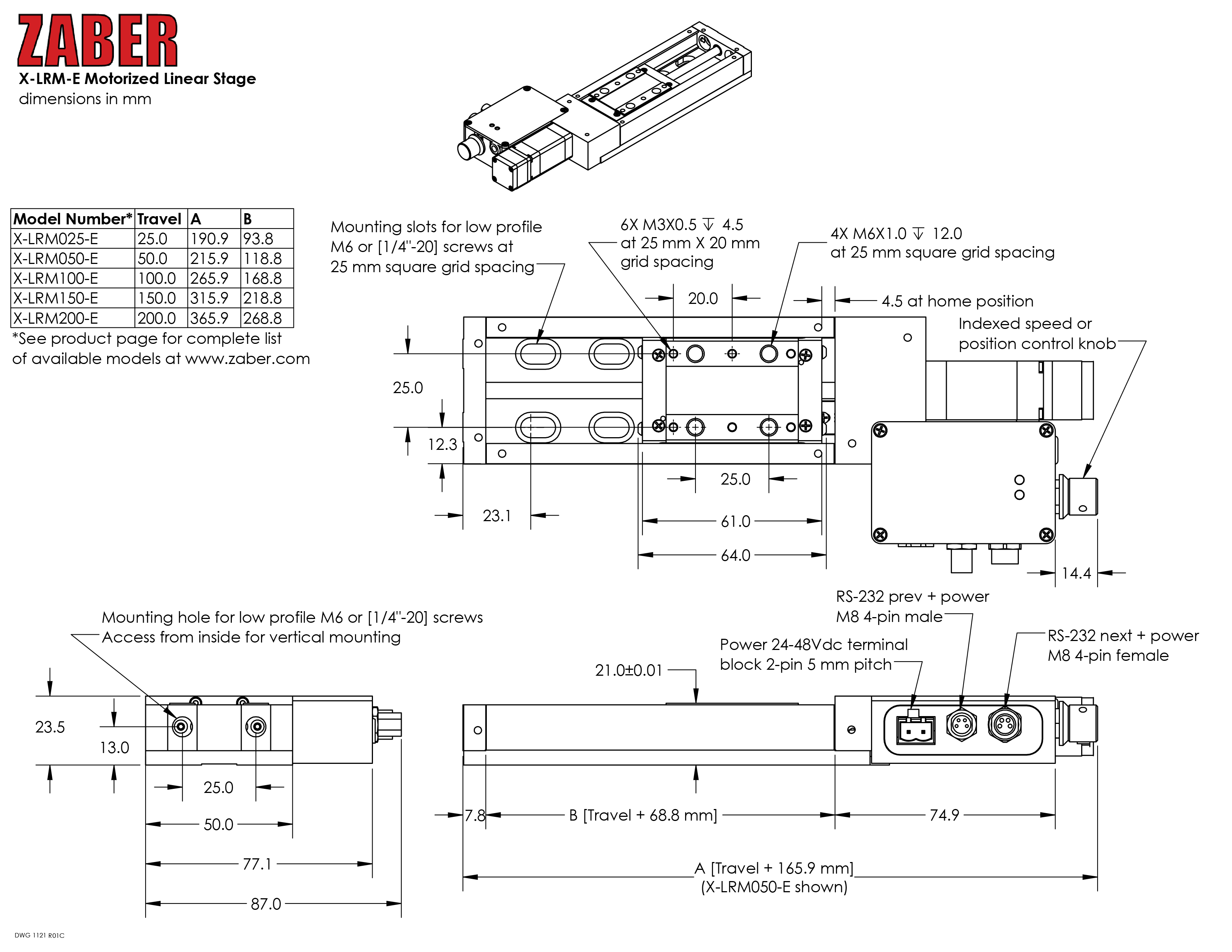

10. Low profile: 21 mm overall height.
11. Multiple X-LRM stages can be assembled into XY or XYZ configurations without additional hardware.

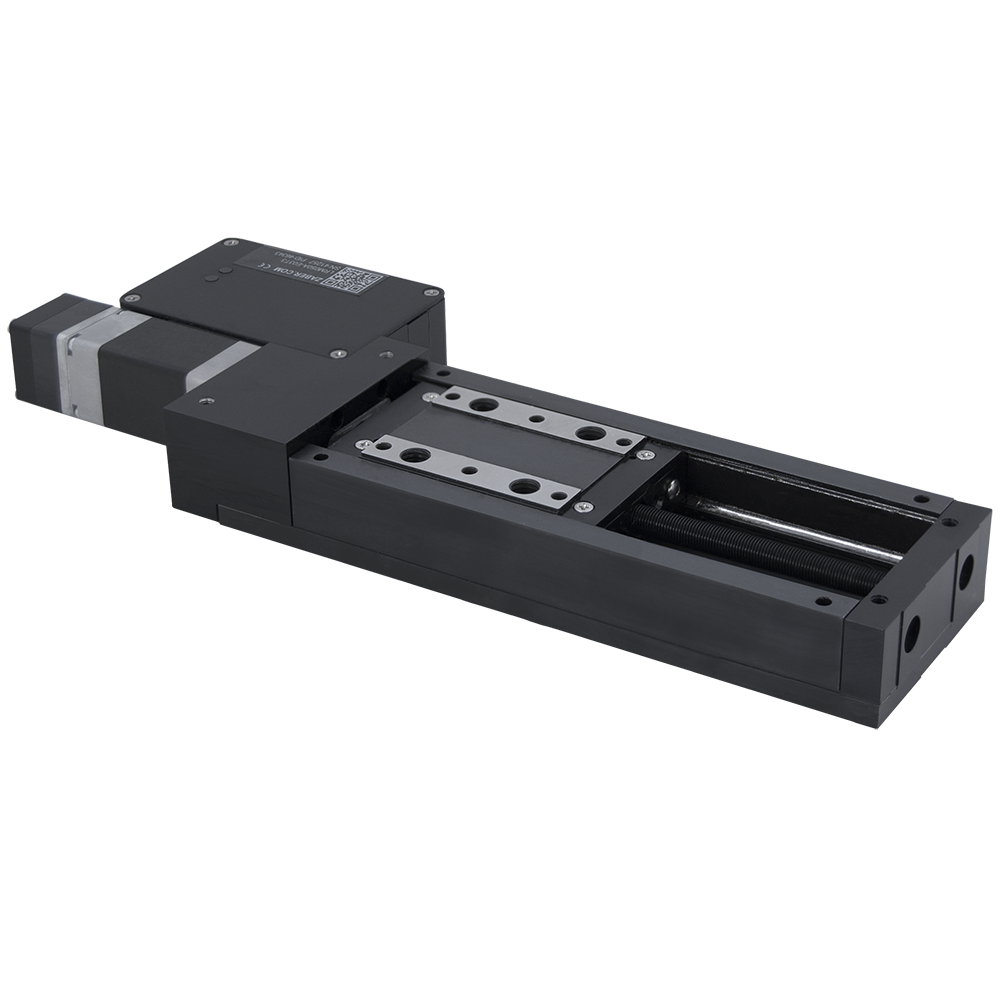

Zaber Technologies’ X-LRM-E Series products are motorized linear stages with integrated controllers. The X-LRM-E's hardened steel construction and recirculating ball bearing guide provide exceptional rigidity and thermal stability. High stiffness makes the X-LRM-E ideal for multi-axis configurations or applications where excellent stability under cantilever loads is required.
The X-LRM-E stages are stand-alone units requiring only a standard 24-48 V power supply. An indexed knob at the end of the unit permits manual control – press and hold to switch between velocity mode and position mode, turn to move the stage, and press to stop.
