T1K04

T1K04

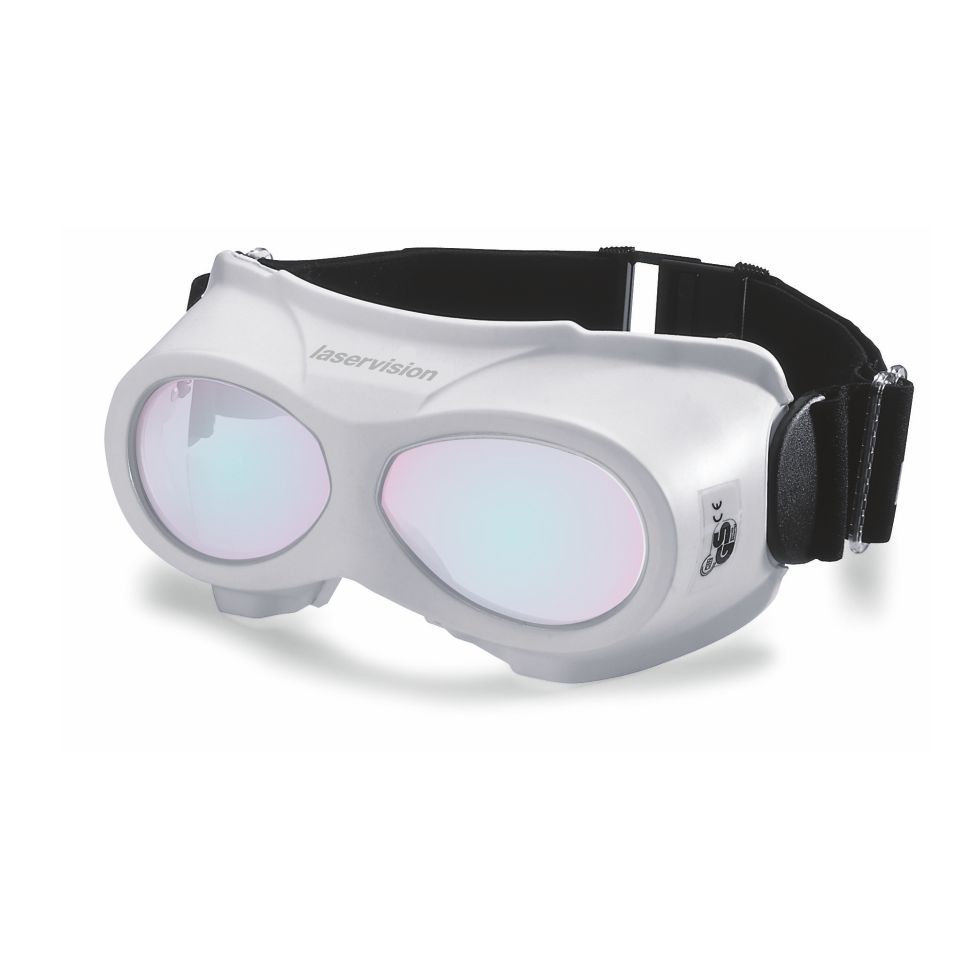

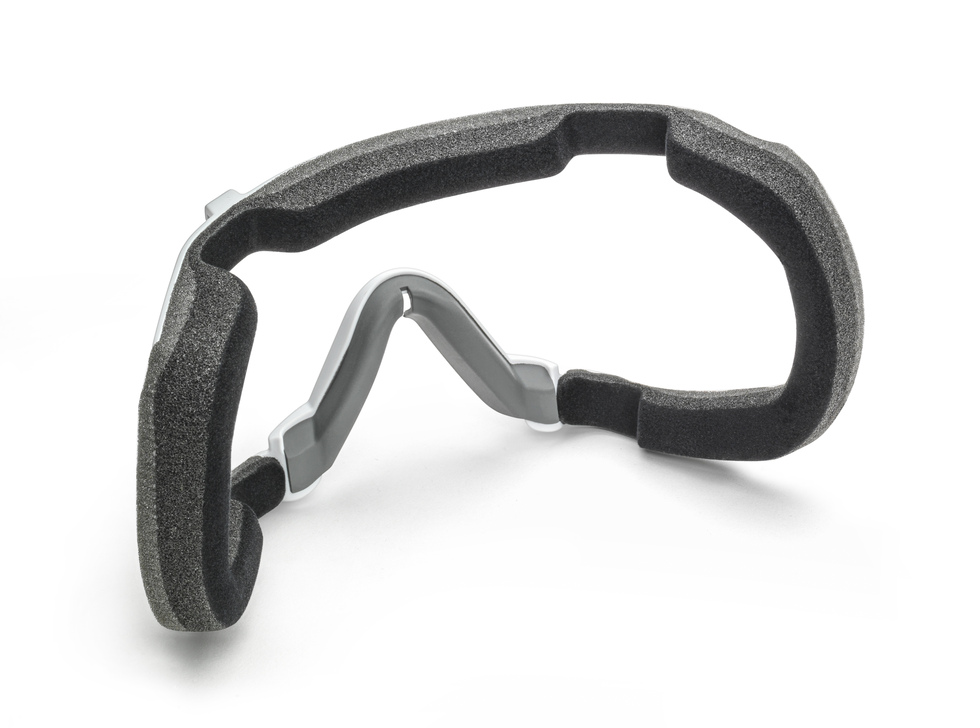

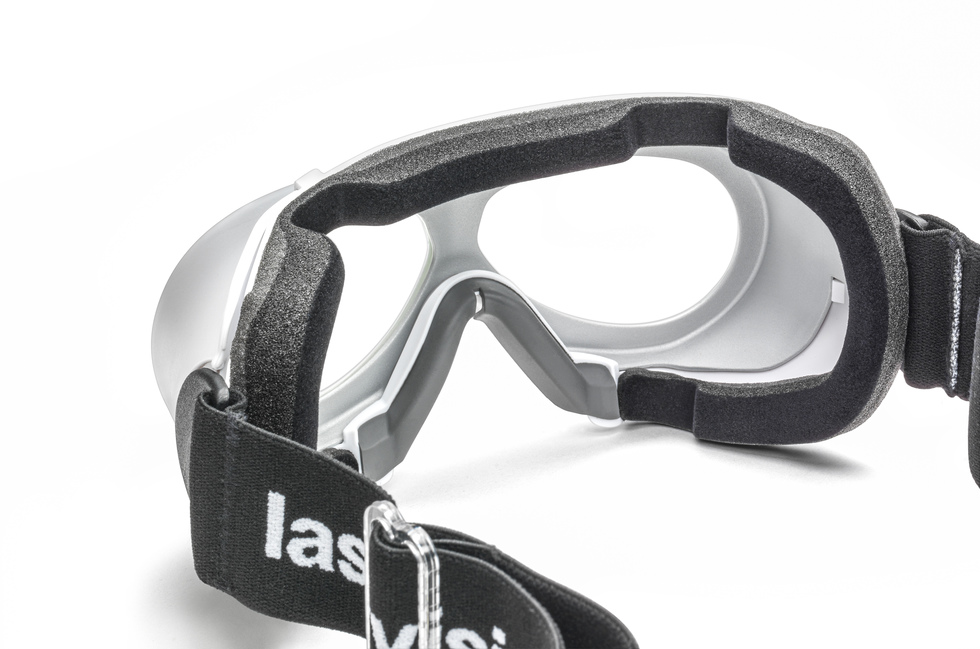

The laservision laser safety goggle R14.T1K04.1004 with an aired foam frame (A), provides high protection ratings for Nd:YAG-, IR-fiber-, disc- and CO2-lasers within the NIR and IR spectral area (1,030-1,100nm; 5,400 and 9,000-11,000nm). The OTG goggle with light grey, coated filters can be worn over average large correction glasses. The changeable click frame with an aired foam (A14AIRED1000) makes the goggles particularly comfortable to wear and prevents fogging of the laser protection filters. A clear view is guaranteed even with a long wearing period. The shipment includes a metal box which can also be used as a storage box





Product Specifications

Coating Interference Coating (PVD)
Cushion No cushion
Filter T1K04
Filter colour Light grey
Filter curvature Base curve 6
Filter material Coated glass
Filter technology Absorption filter, Reflection filter
Filter thickness ca. 4mm
Frame R02
Frame type Spectacle
Properties Adjustable temples, M-protection rating, Neutral glass lamination
Protection Class / Norm EN 207 full protection
Protection range Coated filter, Infrared, near infrared
VLT (approx.) 77%
Visual brightness Very good
Colour recognition Excellent

Protection Levels

WAVELENGTH (NM) OD OPERATING MODE / TESTED PROTECTION LEVEL
1030 – 1100 (OD9+) D LB7 + IM LB9 + R LB8
2000 – 2200 (OD2+) DI LB2 + R LB1
5400 – 5400 (OD4+) D LB3 + I LB4Y + R LB2
9000 – 11000 (OD4+) D LB3 + I LB4Y + R LB2
